Product Introduction

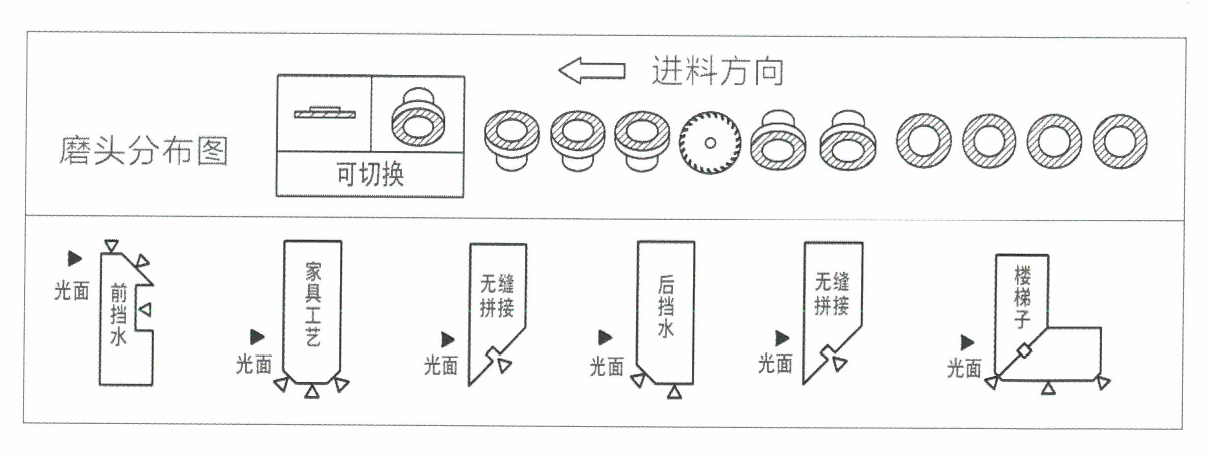

The YBM4241 stone slab edge grinding machine is primarily designed for processing stone slab washbasins and cabinet countertops, including back water-resistant edge grinding; one-step polishing of straight edges with inverted safety corners; seamless joint assembly for sink bases; edge chamfering for cabinet and wardrobe doors; as well as seamless 45° processing and joining for TV cabinets, staircases, island counters, and coffee tables. For applications without the need for reinforcement grooves, the YBM4251 stone slab edge grinding machine can be selected, as this model delivers superior results for 45° joint angles and supports continuous production line operation for high-volume manufacturing.
Technical Parameters
Number of conveyor belts | Number of saw blade wheels | Number of straight-edge grinding wheels | Number of bevel grinding wheels | Saw blade diameter | Diameter of the straight-edge wheel | Bevel wheel diameter |
2 | 1 | 4 | 6 | φ200 | φ150 | 150 middle school |
twig /pc | individual /pc | individual /pc | individual /pc | mm | mm | mm |
working width | Processing thickness | working speed | Aggregate capacity | External dimensions (m): | Total weight |
40 or above | 3-40 | 500-2500 | 39 | 7.6x1.2x2.8 | 3500 |
mm | mm | mm/min | kw | m | kg |
