Product Introduction
YBM4251 slab edge grinding machine is a multi-functional processing equipment with the most comprehensive functions, the highest efficiency and the lowest cost, which is developed by our company according to the latest processing technology of slabs.

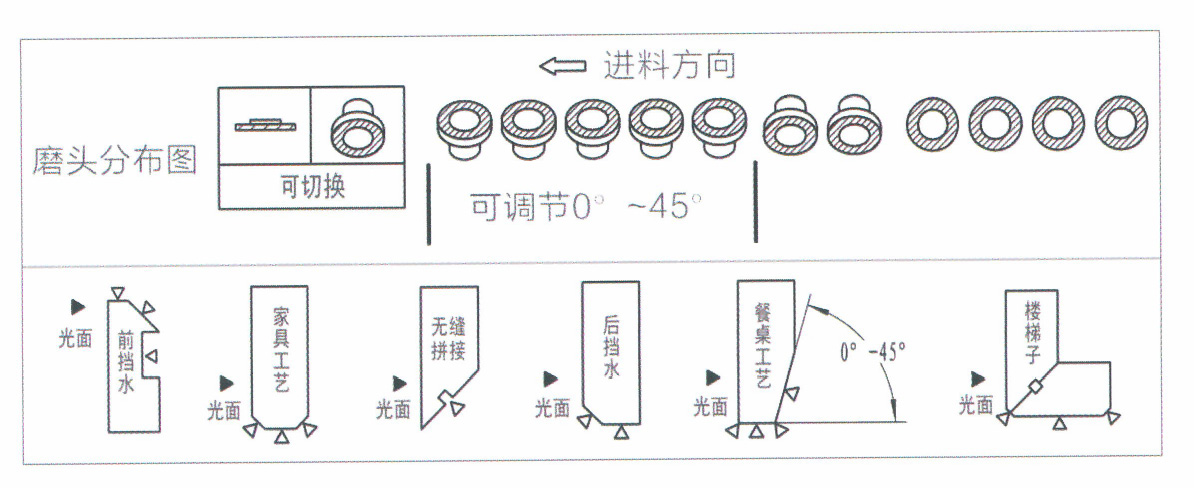

This equipment is primarily designed for manufacturing stone slab products requiring seamless angle-jointing techniques and edge grinding/polishing processes, including washbasins, kitchen countertops, TV cabinets, cabinet doors, wardrobe doors, TV backwalls, staircases, dining tables (with customizable 0-45° backside shaping and polishing), and island countertops. For high-volume production, the system can operate in continuous mode.
Technical Parameters
Number of conveyor belts | Number of straight-edge grinding wheels | Number of bevel | Number of angle grind- | Diameter of the straight-edge wheel | Bevel wheel diameter | ||||||||||||||||||||||||||||||||
2 | 4 | 3 | 5 | φ 150 | 150 middle school | ||||||||||||||||||||||||||||||||
Twig /pc | Individual /pc | piece/ pc | piece/pc | mm | mm | ||||||||||||||||||||||||||||||||
Working width | Processing thickness | Working speed | Aggregate capacity | Outline dimension （m） | Total weight | ||||||||||||||||||||||||||||||||
40 | 60 | 0.5~2 | 45 | 7.5x1.2x2.8 | 3800 | ||||||||||||||||||||||||||||||||
mm | mm | mm/min | kw | m | kg | ||||||||||||||||||||||||||||||||
