Product Introduction
The YBDJ1121 Rock Plate Beveling Machine (or alternatively, the YBDJ15-20 Rock Plate Beveling Machine) is an essential processing equipment for rock plate manufacturers. This machine is primarily used to create 43°–44° bevels required for seamless rock plate joints.
Function Description

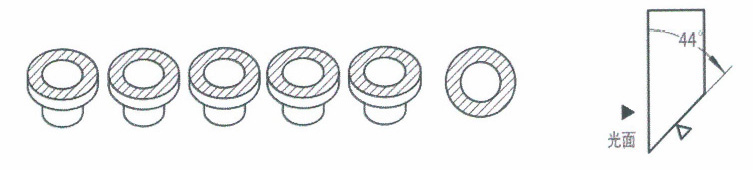

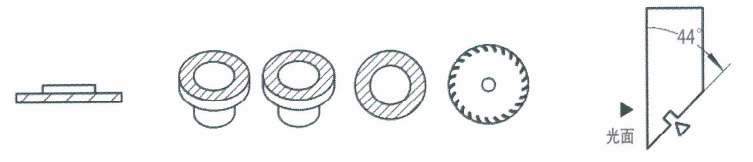

The machining process of this machine involves the following steps: First, use a saw blade to cut and chamfer the edges, leaving a margin of approximately 1 mm. Next, grind the chamfered area with a diamond wheel until a remaining margin of about 0.3 mm is achieved, followed by grinding the edges with a resin wheel to achieve a sharp tip. The machining is then complete.
Technical Parameters
Number of conveyor belts | Number of saw blade grinding wheels | Number of straight | Number of bevel | Blade Diameter | Diameter of | Bevel wheel diameter | |||||||||||||||||||||||||||||||
2 | 1 | 1 | 3 | φ300 | 150 middle school | 150 middle school | |||||||||||||||||||||||||||||||
Item/pc | piece/pc | piece/pc | Individual /pc | mm | mm | mm | |||||||||||||||||||||||||||||||
Working width | Processing thickness | Working speed | Total power | Outline dimension （m） | Total weight | ||||||||||||||||||||||||||||||||
40 | 3-20 | 500-1500 | 20 | 6.2x1.2x2.8 | 2500 | ||||||||||||||||||||||||||||||||
mm | mm | mm/min | kw | m | kg | ||||||||||||||||||||||||||||||||
