Product Introduction

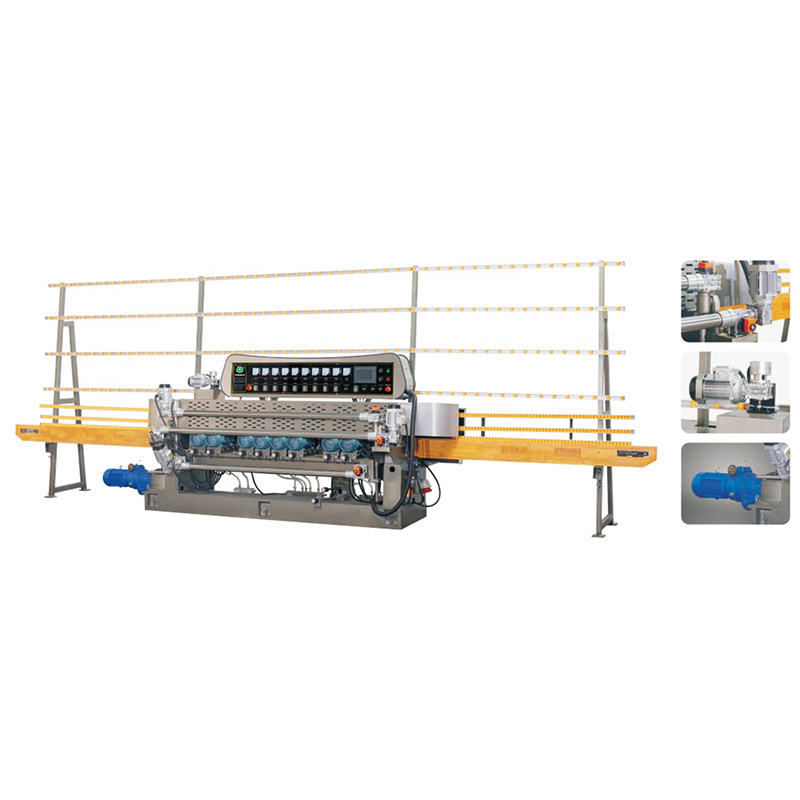

The JH-XM261 is a precision beveling machine designed for straight-line edge processing on flat glass. Engineered to deliver high-quality bevel finishes, it integrates coarse grinding, fine grinding, and polishing in a single, continuous process, ensuring consistent edge smoothness and gloss. The machine features a sturdy frame and precision guide mechanisms, providing stable operation and long-term reliability under continuous use. With an intuitive control interface, operators can easily adjust bevel width and angle to meet diverse application requirements. Ideal for architectural glass, furniture glass, mirror processing, and decorative glass applications, the JH-XM261 offers efficient, high-quality beveling for both small-batch and large-scale production environments.
Product Features
Equipped with 9 grinding motors and a lifting beveling system, with a maximum bevel angle of 45°.

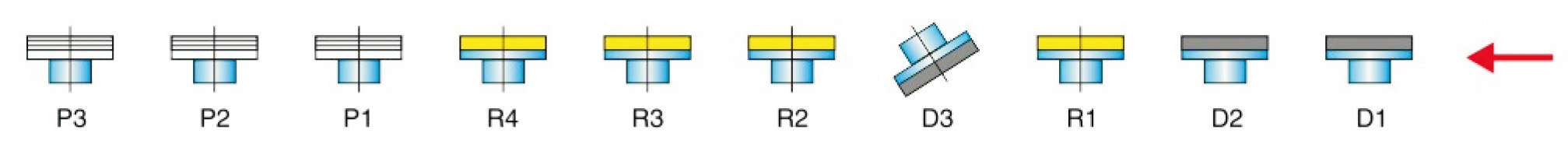

Suitable for bevel edge and bottom edge processing, integrating rough grinding, fine grinding, polishing, and bottom grinding in a single operation.
Produces a mirror-like polished finish with excellent edge quality and consistent processing results.
Features a fully electric control system, direct-drive grinding motors, and a twin-screw adjustment mechanism for stable performance and precise bevel angle control.
Digital displays allow convenient monitoring and adjustment of glass thickness, processing speed, and bevel angle, while the front-beam lifting function provides greater processing flexibility.
Combines a compact structure, high precision, easy operation, and a wide processing range, supporting bevel angles from 3°to 45°.

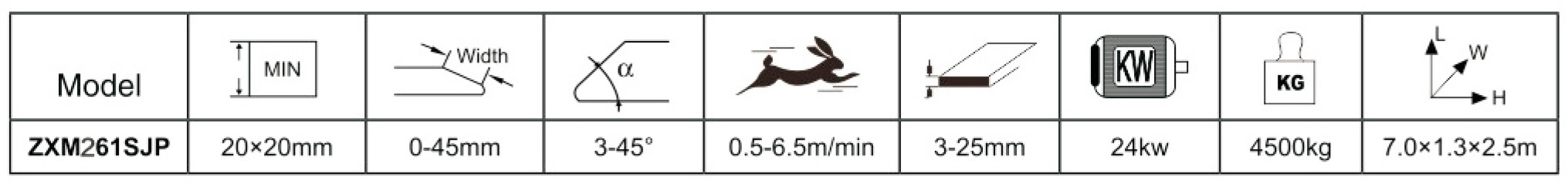

Technical Parameters
