Product Introduction

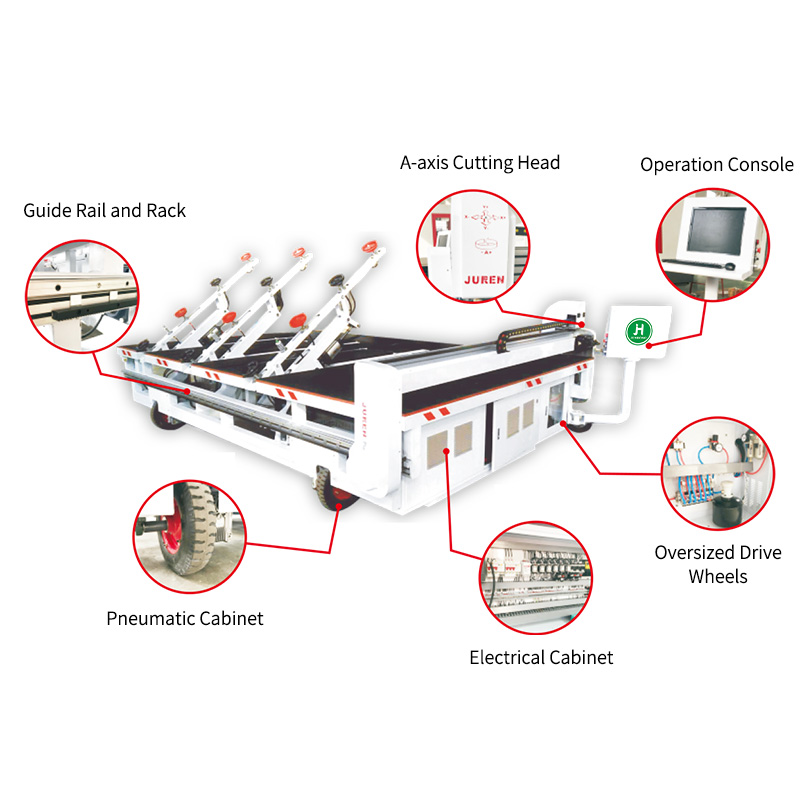

An integrated loading and cutting solution engineered for automated glass processing. Combines a CNC-controlled cutting bridge with an automatic lifting gantry for seamless sheet handling.
Optimized Workflow: Eliminates manual loading, reducing cycle times and operator intervention.
Precision Cutting: High-accuracy servo-driven axes ensure clean, burr-free cuts with minimal breakage.
Compact Footprint: Combines two functions in one machine, saving floor space.
User-Friendly Control: Intuitive software with nesting optimization for maximum material utilization.
Designed for high-efficiency glass processing in architectural, automotive, and furniture glass applications.
Integrates automatic loading, glass cutting, breaking, and air-floating functions into a single machine for efficient glass processing.
Supports straight-line cutting and irregular shape cutting to meet a wide range of production requirements.
Features fully automatic operation from loading to cutting, reducing manual intervention and improving productivity.
Equipped with remote control and intelligent control systems for convenient operation and process management.
Replaces separate loading, cutting, and breaking machines, reducing equipment investment and floor space requirements.
Offers lower labor intensity, enhanced operational safety, and reduced overall production costs, making it an ideal choice for small and medium-sized glass processing enterprises.
Technical Parameters
Model | Maximum Glass Size mm | Minimum Glass Size mm | Glass Thickness mm | Cutting speed m/min | Power
kw | Overall dimensions (L×W×H) mm | Weight kg |
JR-CNC-2620-AIII | 2020x2550 | 100×100 | 46072 | 0～120 | ≤3 | 3000x2800x1250 | 1500 |
JR-CNC-3628-AIII | 3660×2800 | 100×100 | 46072 | 0～150 | ≤3 | 4700x3000x1250 | 3000 |
