Product Introduction
The machine features an integrated design for stability and simplicity. The X/Y/Z/C axes employ CNC servo motors and stepper motors, ensuring high precision. The X-axis longitudinal beam utilizes an oil-immersed linear track with bevel gear transmission, offering superior precision and effective track protection. The Z-axis employs a linear track combined with ball screw transmission. The C-axis rotation is driven by a high-performance robotic-grade rotary reducer, enabling precise control of the head's rotation angle.

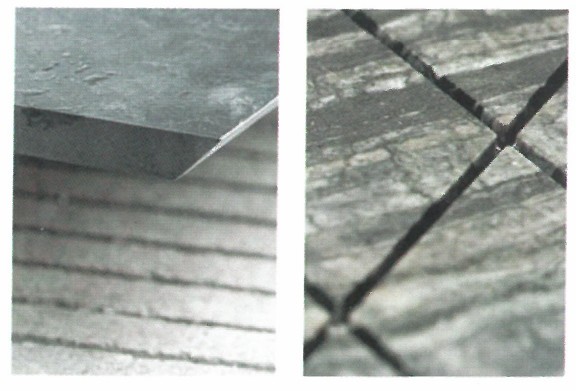

This machine features a 45° chamfering function, diamond-shaped cutting capability, high-speed operation, and superior precision, making it ideal for cutting high-value slabs and natural marble stones.
Technical Parameters
Table specifications | Maximum cutting | Blade Diameter | Table size | Total power | Out dimension | Total machine | ||||||||||||||||||||
3200×2000 | 3200x2000x40 | φ300-400 | 11 | 16 | 4800×3100 | 3 | ||||||||||||||||||||
mm | mm | mm | kw | kw | mm | T | ||||||||||||||||||||
