Product Introduction
A multi-purpose CNC machine that combines milling and grinding capabilities for processing flat or shaped glass components. Equipped with a high-speed spindle and precision linear guides, it performs profiling, edge finishing, drilling, and surface grinding in a single setup. The rigid machine structure ensures vibration-free operation, delivering tight tolerances and smooth surface finishes. Intuitive CAD/CAM software simplifies programming for custom shapes, while the compact footprint makes it suitable for both small batch work and continuous production. Ideal for architectural glass, automotive glass, and technical glass applications requiring complex geometries with high accuracy.
Product Features
Technical Parameters
Name | Specification mm | Power
kw | Weight
kg | travel distance mm | Scope of Application |
Single Head Small Boring Machine | 3000x1700x1500 | 5 | 500 | 500 | Glass lock hole, square hole, small door hole, bathroom clip, etc., can mill one hole at a time. |

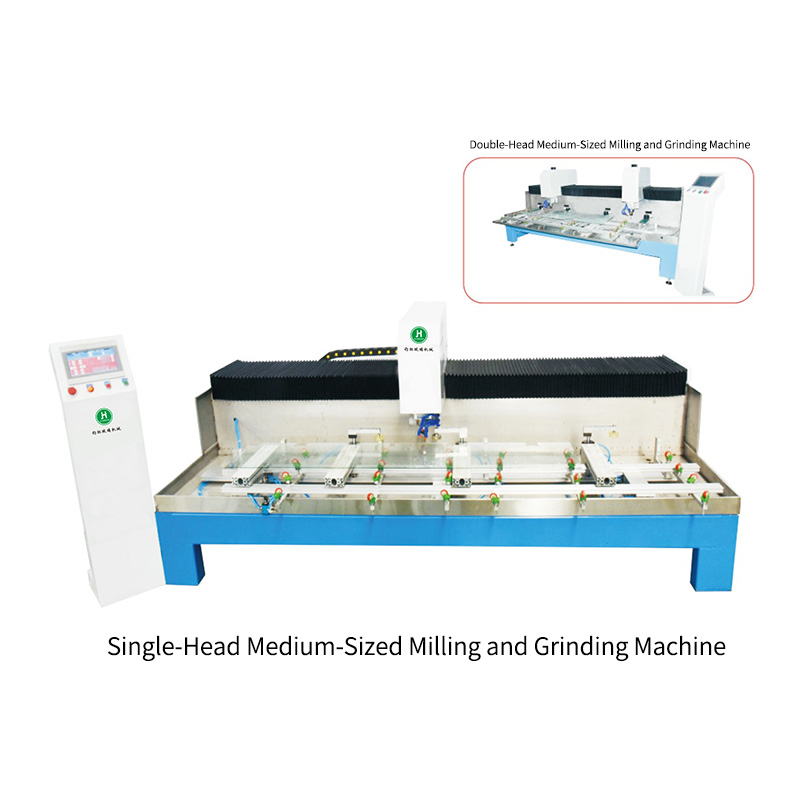

Single Head Medium Boring Machine | 3200x1900x1500 | 5 | 700 | 2500 | Glass lock hole, square hole, door hole, bathroom clip, right angle, ground single spring door clip, single-sided drilling, etc., can continuously mill multiple holes at once. |
Single Head Large Boring Machine | 3250x2250x1800 | 6 | 1500 | 2500 | Glass lock hole, square hole, door hole, bathroom clip, inner square hole, inner round hole, right angle, ground spring door clip, single-sided drilling, etc., can continuously mill multiple holes at once. |
Double Head Small Boring Machine | 3200x1700x1500 | 8 | 1500 | 2500 | Bathroom clip, square hole, door hole, lock hole, ground spring door clip, etc., can mill two or three holes simultaneously. |
